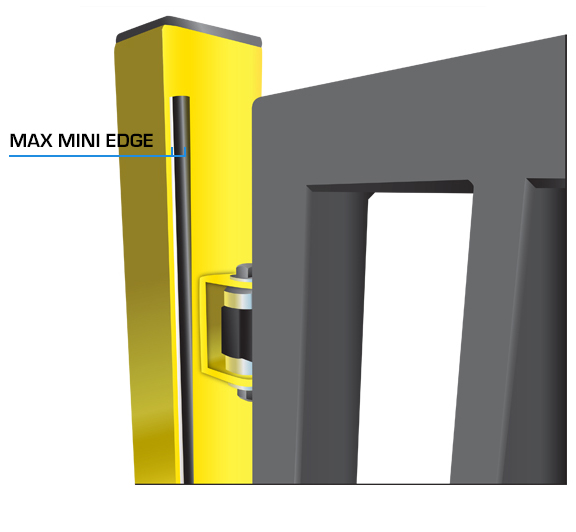

Max Mini Edge illustration

Get the Max Edge specifications pdf by clicking the download button.
Or, see the information below to learn about features and specifications without leaving this page.

MAX MINI EDGE

SMALL FOOTPRINT SLIDE GATE SAFETY EDGE

For installations where a low profile design, compliance, safety and reliability are critical.
Maximum Controls introduces the Max Mini Edge…a maintenance free, easy to install, high quality, reversing, edge sensor, small in footprint but safe enough to use on train doors where failure is not an option. The Max Mini Edge operates at extreme temperature ranges and is small enough not to be an eyesore in critical applications. Paired with the MillerEdge GEM-104 sensing module, Maximum Controls offers a reliable, cost effective, swing & sliding gate edge solution for UL 325 2016 compliance.

This area is here to create space. This area is here to create space.This area is here to create space.This area is here to create space.This area is here to create space.

ETL Listed gate operator product.
Specifications Download

Max Mini Edge Specifications

  • MADE IN: Germany
  • LENGTH: 48″
  • ATTACHMENT HARDWARE: 48″ Aluminum Bar
  • MATERIAL: EPDM Rubber
  • ACTIVATION FORCE: Soft Touch Engagement
  • OPERATING TEMPERATURE: -25° + 75° / -13°F +167°F
  • RAINPROOF: Both ends
  • LENGTH OF ATTACHMENT CABLE: 5M / 15FT
  • CABLE MATERIAL: Pure Matt Schwarz / Pure Matte Black
  • MULTI DIRECTIONAL SENSING: Yes
  • WARRANTY: 1 Year
  • MAINTENANCE: Free

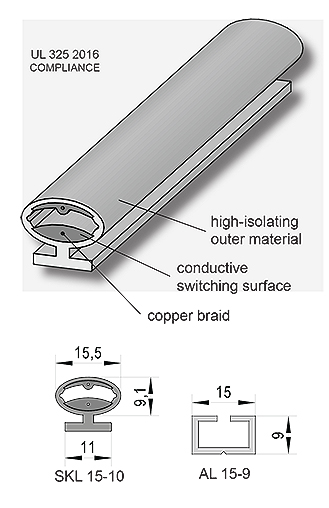

Max Mini Edge Dimensions

Pair the Max Edge 1 with the MillerEdge GEM-104 sensing module:
